True bottom mountSoft close88 lb load

Black Undermount Drawer Slides

4.6 (19)
SKU CX-BM-SL-PARENT

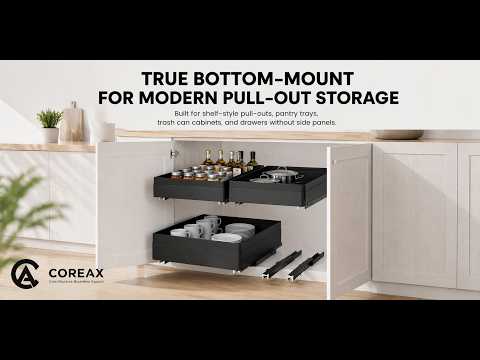

Black Undermount Drawer SlidesTrue Bottom Mount Slides
  • TRUE BOTTOM-MOUNT, NO SIDE PANELS NEEDEDUnlike standard "undermount" slides that still require side cabinet walls for installation, these true bottom-mounted rails secure directly to the cabinet floor or base panel. They are the perfect solution for pull-out shelves, hidden trash can cabinets, pantry trays, and custom drawers without side panels.
  • MODERN BLACK FINISH FOR VISIBLE PULL-OUTSThe sleek black coating blends into dark cabinet interiors and pairs well with matte black hardware.
  • SOFT CLOSE, SMOOTH 3-SECTION GLIDEBuilt-in damping helps the drawer close quietly and gently for everyday use.
  • HEAVY-DUTY BOTTOM SUPPORTEngineered for stability with up to 88 lb load capacity for pantry, under-sink, trash can and utility storage pull-outs.
  • MEASURE BEFORE BUYING & EASY INSTALLDesigned for cabinets with a solid bottom or base panel; choose a slide length shorter than your cabinet inner depth.
No side panels requiredA practical option for shelf-style pull-outs, hidden trash-can cabinets, pantry trays, and open-base upgrades.
Soft-close 3-section glideBuilt-in damping helps drawers close quietly and smoothly under everyday cabinet loads.
Modern black finishBlends into dark cabinetry, utility drawers, and visible pull-out systems.
Bottom support structureDesigned to support from below rather than hanging from the drawer side wall.

From the Brand

Choose it for shelf-style pull-outs supported from below.

This is for bottom-supported trays, pantry organizers, trash-can pull-outs, and open shelf builds. It is not a universal drop-in replacement for every traditional side-mount or concealed drawer slide.

  • Pantry pull-outs
  • Trash can cabinets
  • Under-sink trays
  • RV cabinet drawers
  • Wardrobe organizers

Cabinet Fit

Cleaner pull-outs without visible side rails.

The rail supports the tray from underneath, making it useful for pantry shelves, trash cabinets, and compact organizers.

Mounting Logic

Support comes from the base, not the side wall.

This matters when the tray is open-sided, visible, or built from a solid bottom panel rather than a conventional drawer box.

Finish

Black hardware stays visually quiet.

The powder-coated finish fits dark cabinets and visible pull-outs better than bright silver hardware.

Fit Warning

Measure cabinet depth before choosing length.

Select a slide shorter than the inside depth and confirm the tray bottom can carry fasteners and daily load.

Product information

Measure before ordering.

Use the full chart for closed length, overall extended length, pull-out travel, side width, and profile height.

Before ordering
  • Confirm the drawer or tray has a solid bottom panel.
  • Choose a slide length shorter than the cabinet interior depth.
  • Keep left and right runners square before tightening fasteners.
  • Avoid side-wall-only drawers unless the base can carry the load.

Install & support

Questions that change the setup.

Is this the same as a side-mount slide?

No. It is a true bottom-mount slide for bottom-supported pull-out shelves and trays, especially where conventional side panels are absent or visible.

Will it close softly?

Yes. The slide includes damping for quieter, smoother closing under everyday cabinet loads.

Fit & selection guides

Review 5 fit checks. Use only the guides you need.

  1. 01Plan the cabinet pull-out
  2. 02Confirm the mechanism
  3. 03Check open-shelf support
  4. 04Plan the installation
  5. 05Troubleshoot movement
Installation and troubleshooting

Use these secondary guides after confirming the cabinet opening, support method, and installation path above.

Before you drill

Keep the final setup serviceable.

Shelf-style pull-outsBest results come from a solid tray or base panel that lets the rail support the pull-out from below.
Replacement caution
Need help confirming fit?

Confirm drawer bottom structure, cabinet opening, and required slide length before drilling.

Open Technical Support

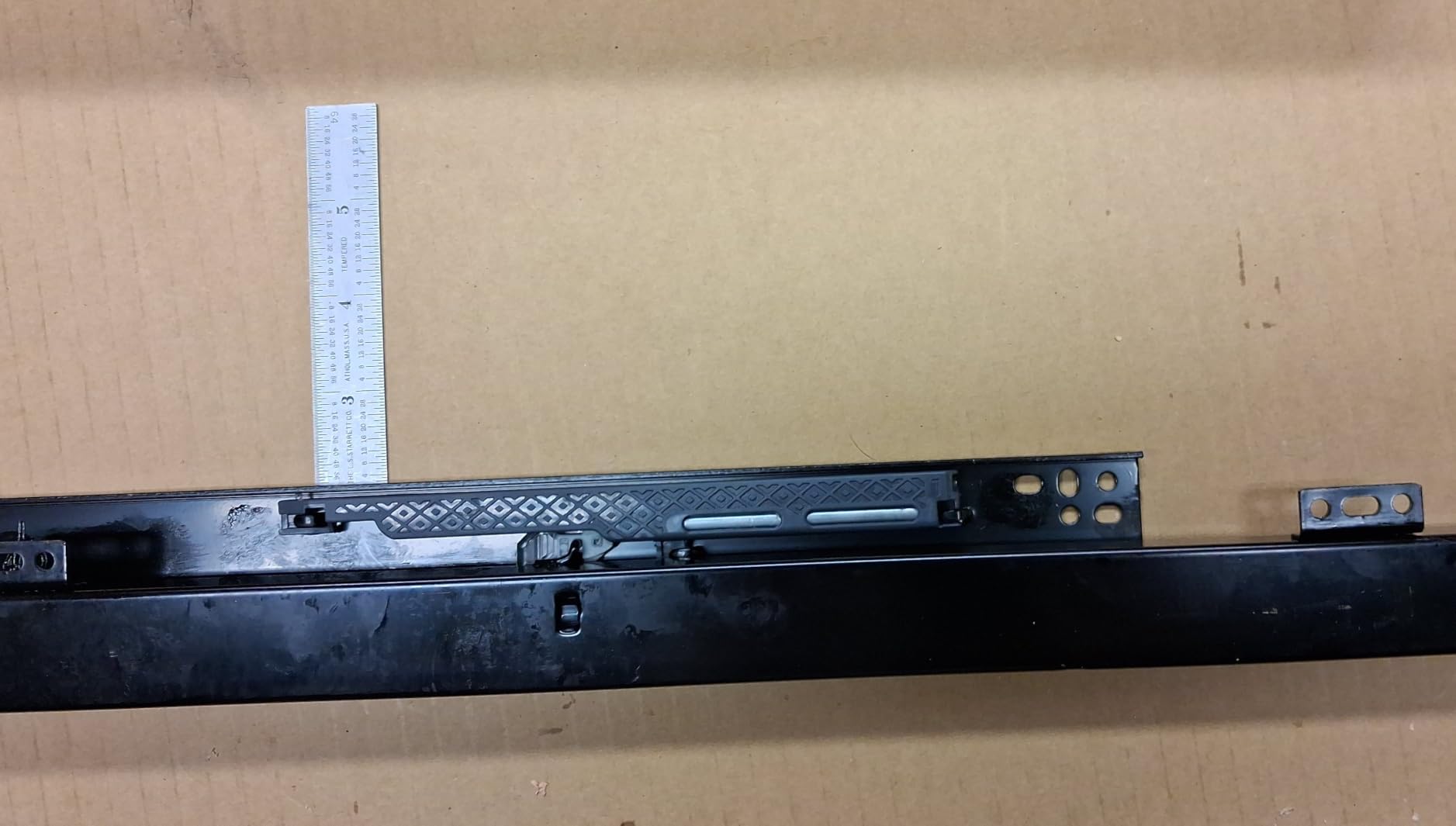

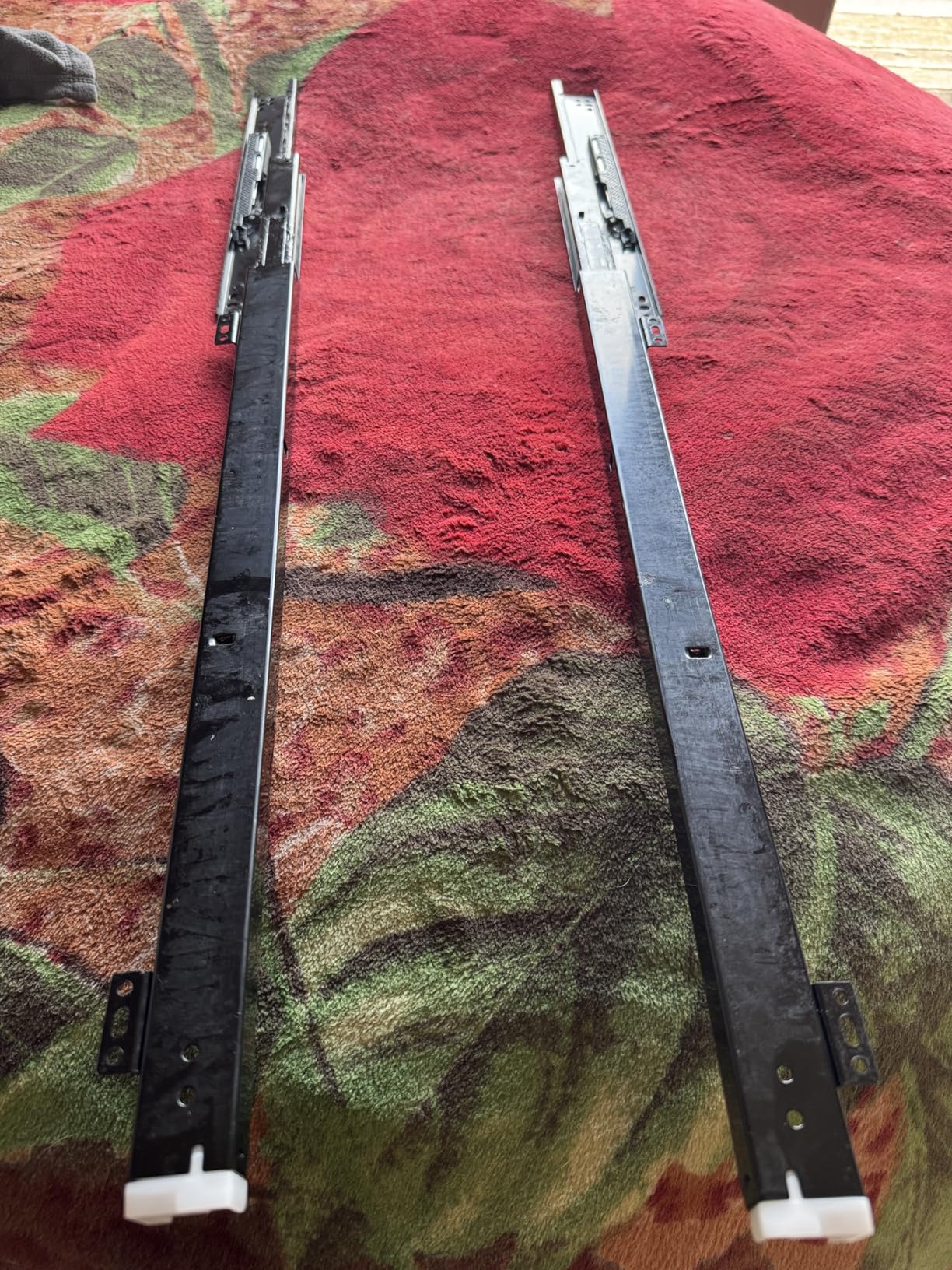

Customer photos & videos

Customer reviews

See all reviews
  1. TT. Shoup

    Easy to install and they carry the weight

    United States

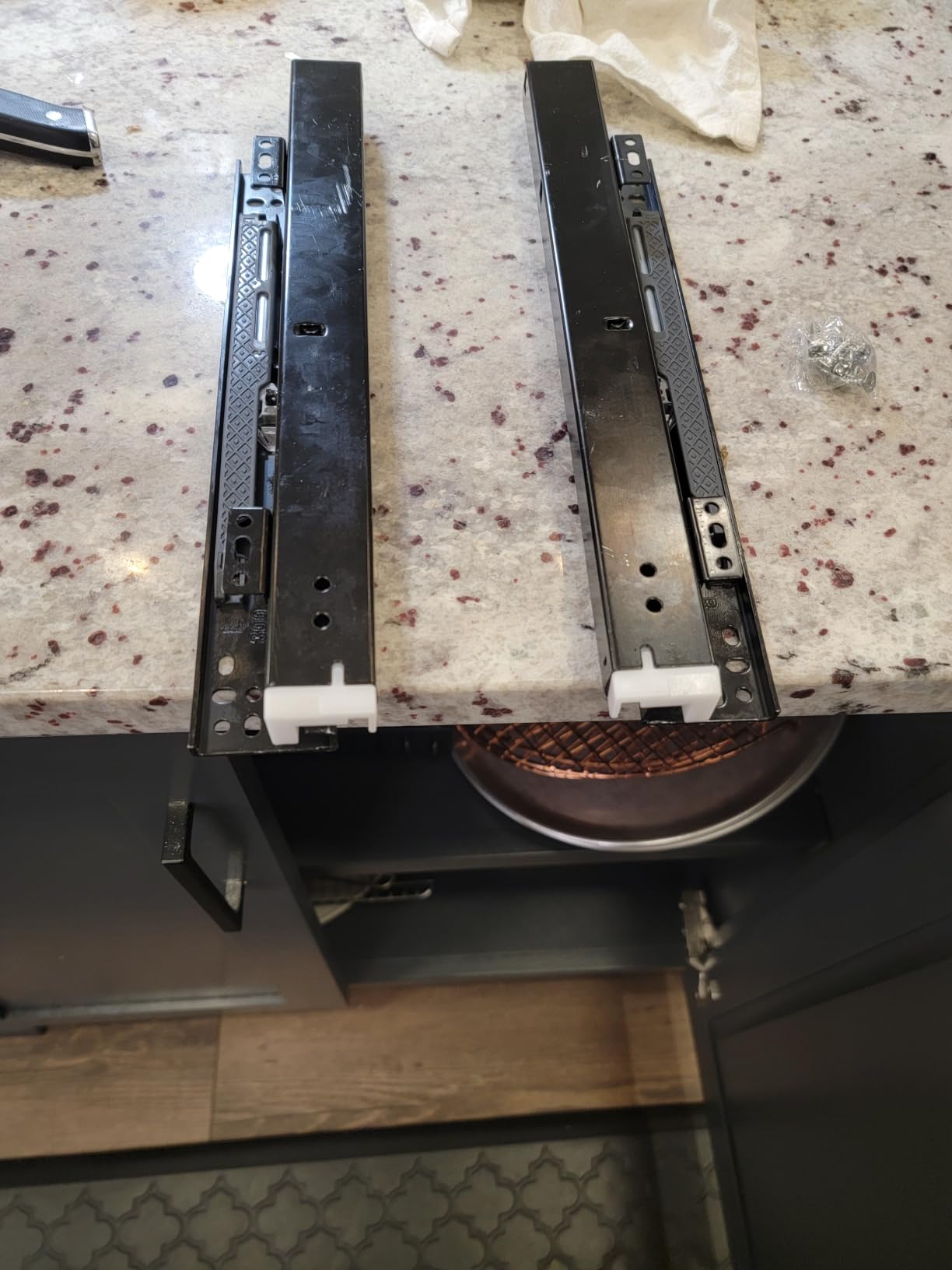

    I wanted undermount drawer slides to hold a drawer in the bottom of a floor-level cupboard for flour, seeds, and other baking supplies; weight adds up! I mounted these to the bottom of the drawer first,…

    Read full review

    Reviewed configuration: Size: 20 Inch

    Originally posted on AmazonVerified purchase on Amazon

  2. KKL

    Coreax under mount shelf slides recommended.

    United States

    Strong, sturdy, well-built and operates smoothly. Some DIY experience or YouTube info helpful, as no instructions or template provided. Can customize to your own shelf dimensions, and shelf almost fully extends for good access.

    Originally posted on AmazonVerified purchase on Amazon
