53mm detachable heavy-duty drawer slide pair on a white background

53mm Detachable Heavy-Duty Drawer Slides

53mm Detachable Heavy-Duty Drawer Slides

Project pricing · Request a quote

SKU CX-B2B-A53

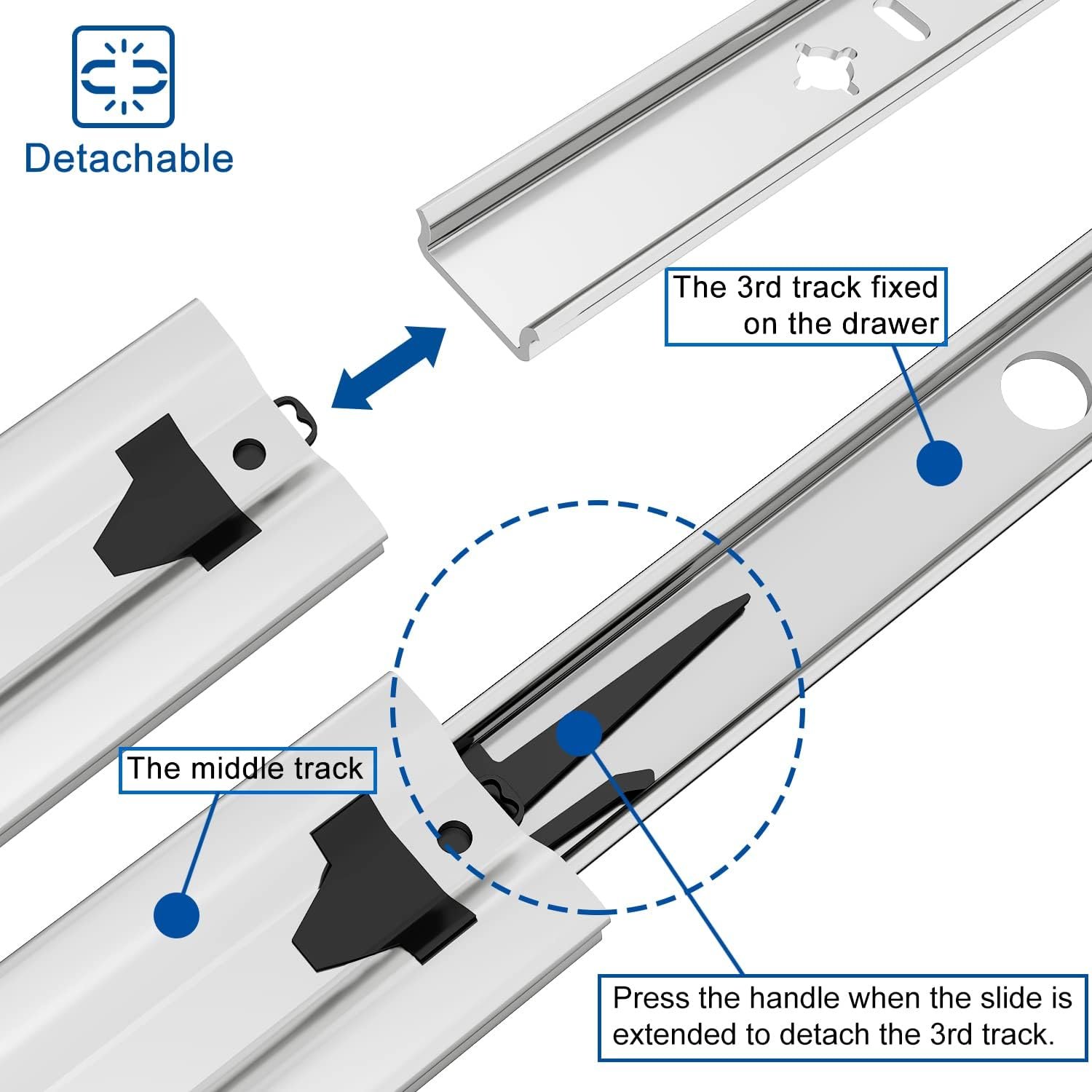

A 53mm-wide, three-member full-extension slide with a detachable inner member for easier side-mount installation.

Function
Detachable Manual Close
Motion

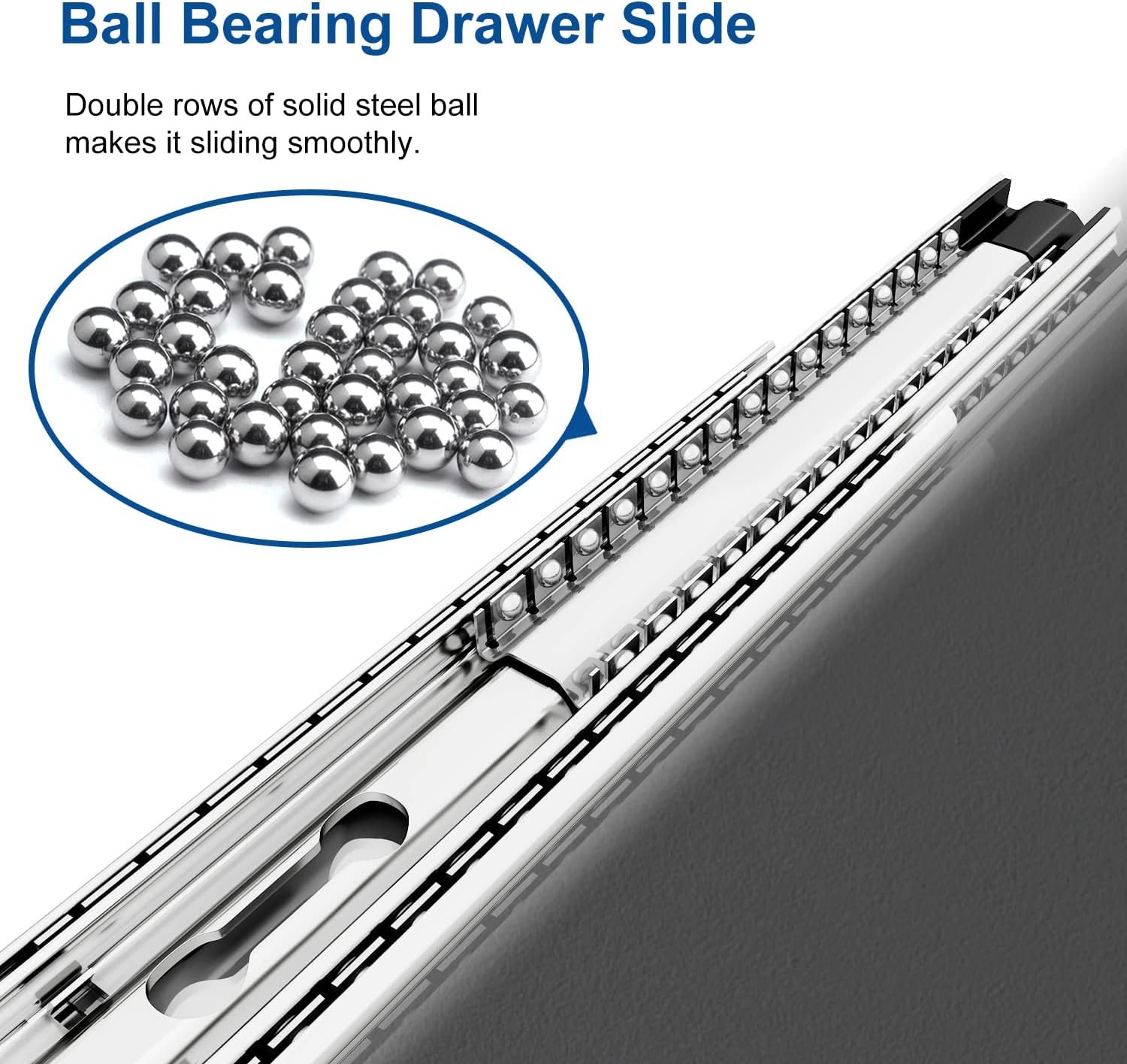

Three-member full extension
Closing behavior
Manual close without lock
Program fit
Heavy pull-outs that need a detachable inner member for assembly or service access.

Product specification

Review the core dimensions and operating details.

Production ratings, drawings and the final commercial basis are confirmed in the formal quotation.

Profile
53 mm side mount
Material
Cold-rolled steel
Extension
Full extension
Length range
12–40 in
Load statement
Length-dependent; confirm the selected size in the formal quotation
Installation
Allow about 0.75 in (19 mm) per side; confirm the selected-length drawing before drilling

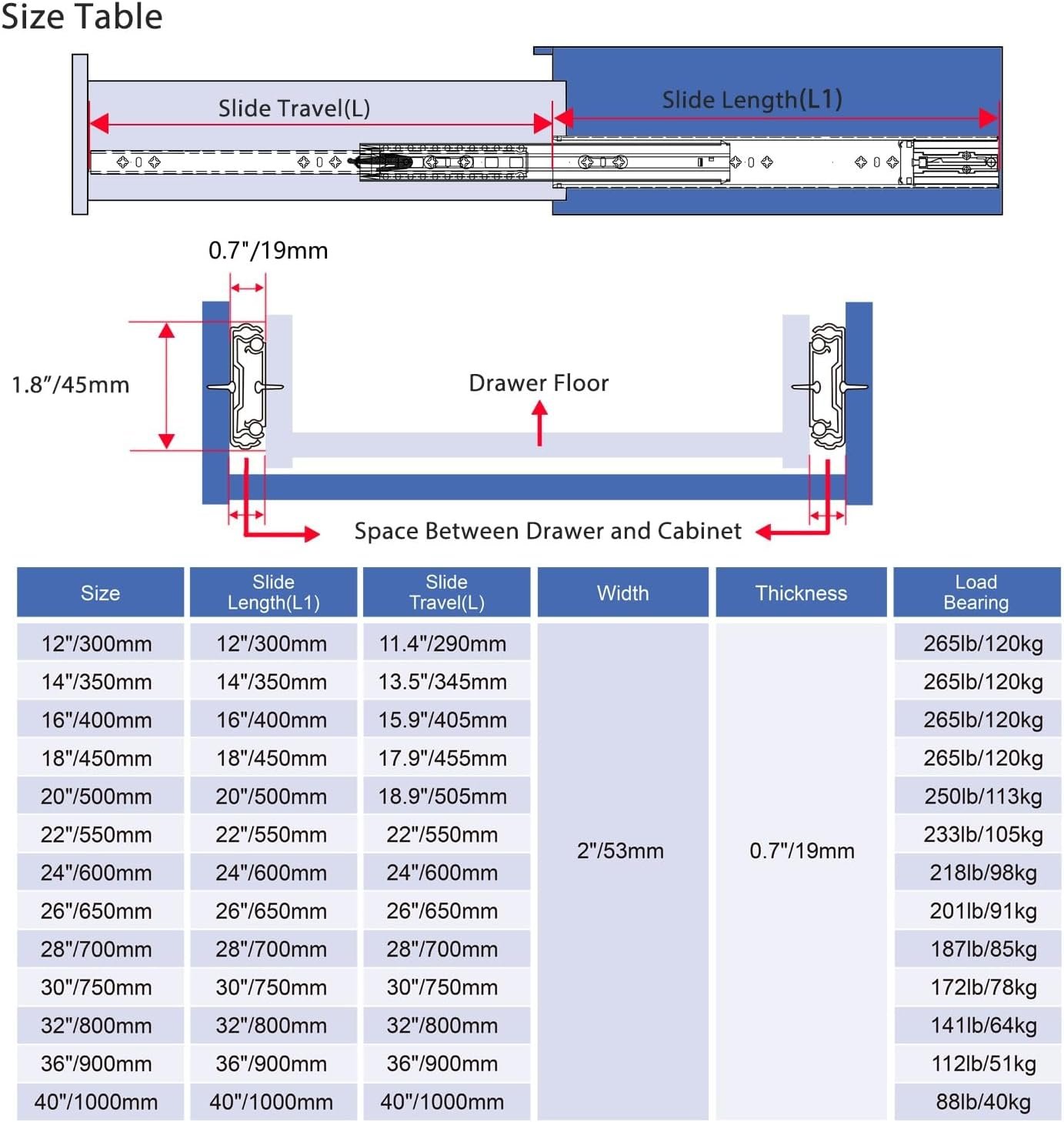

Size & Fit

Confirm the installation envelope before pricing.

Use the selected length as a starting point, then share the surrounding dimensions for application-specific review.

  1. Choose the required length and finish.
  2. Confirm side clearance and surrounding structure.
  3. Provide estimated quantity and delivery destination.
  4. Share drawings or photos when the fit is application-specific.

Installation

Plan around the structure, not only the slide length.

Confirm mounting orientation, side clearance, fastener access and the material receiving the hardware.

For a non-standard enclosure, include a drawing or clear photos with dimensions in the technical question.

Ask a Technical Question

Applications

Check whether this function matches the build.

Heavy pull-outs that need a detachable inner member for assembly or service access.

Three-member full extension

Manual close without lock
