Black 45mm push-to-open three-member drawer slide pair with rebound mechanism and mounting screws

45mm Residential Drawer Slide Platform

45mm Push to Open Drawer Slide

Project pricing · Request a quote

SKU CX-B2B-45R-PTO

A spring-assisted, ball-bearing full-extension slide that opens with a press for handle-free cabinet and furniture programs.

Function
Push to Open
Motion
Three-member ball-bearing full extension
Closing behavior
Press-to-release spring-assisted opening
Program fit
Handle-free cabinets and lower drawers that benefit from press-to-open access.

Product specification

Review the core dimensions and operating details.

Production ratings, drawings and the final commercial basis are confirmed in the formal quotation.

Profile
45 mm side mount
Material
Cold-rolled steel
Extension
Full extension
Length range
12–24 in
Load statement
Up to 100 lb in the referenced configuration; confirm the selected production specification in the formal quotation
Installation
Side mount; allow clearance on both sides. Face-frame installations need separate brackets; confirm the production drawing before drilling.

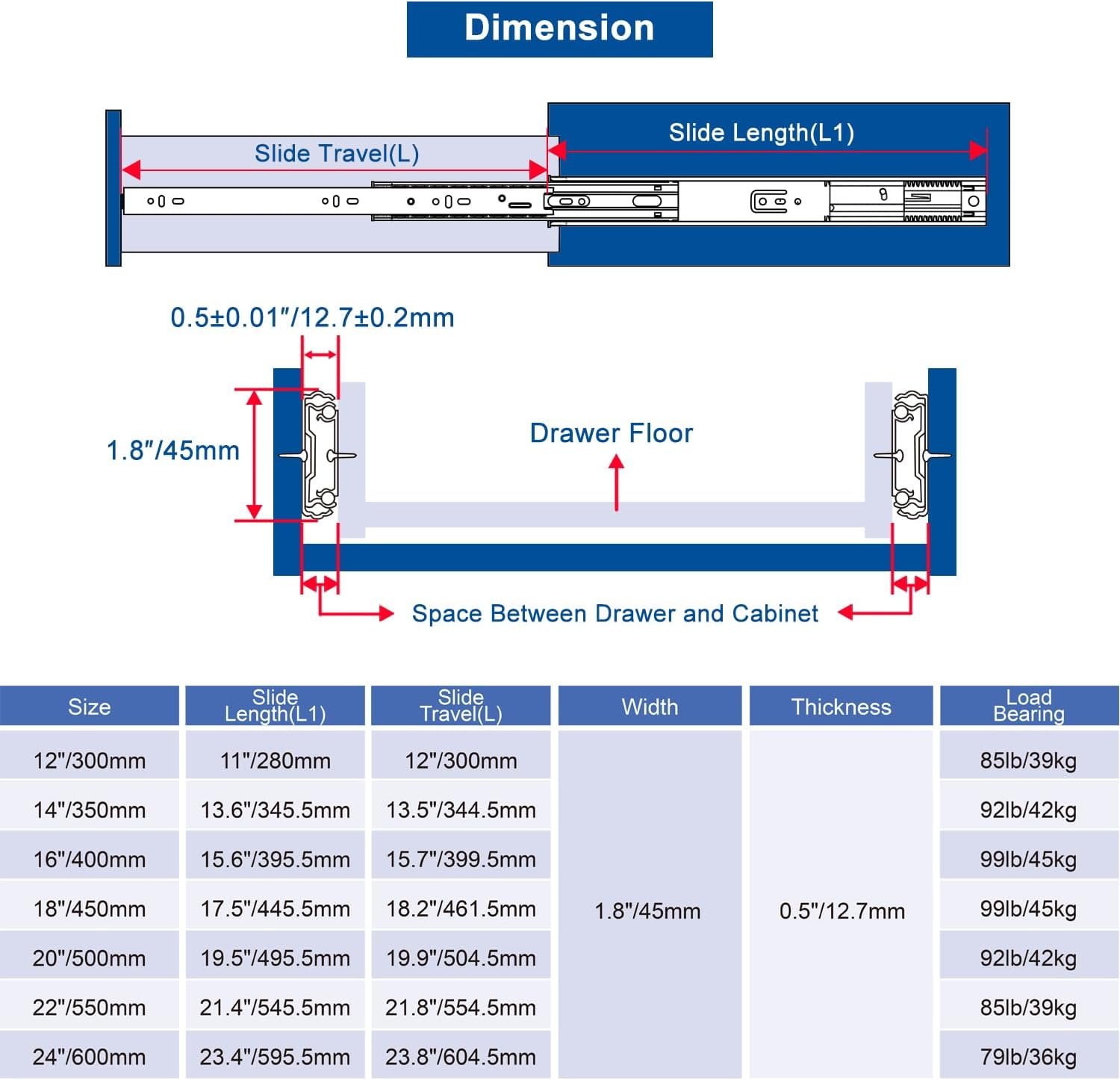

Size & Fit

Confirm the installation envelope before pricing.

Use the selected length as a starting point, then share the surrounding dimensions for application-specific review.

  1. Choose the required length and finish.
  2. Confirm side clearance and surrounding structure.
  3. Provide estimated quantity and delivery destination.
  4. Share drawings or photos when the fit is application-specific.

Installation

Plan around the structure, not only the slide length.

Confirm mounting orientation, side clearance, fastener access and the material receiving the hardware.

For a non-standard enclosure, include a drawing or clear photos with dimensions in the technical question.

Ask a Technical Question

Applications

Check whether this function matches the build.

Handle-free cabinets and lower drawers that benefit from press-to-open access.

Three-member ball-bearing full extension

Press-to-release spring-assisted opening
